What is RG-6/U coaxial cable?

RG-6 is a common type of coaxial cable used in a wide variety of residential and commercial applications. An RG-6/U coaxial cable has a characteristic impedance of 75 ohms. The term "RG-6" is generic and is applied to a wide variety of cable designs, which differ from one another in shielding characteristics, center conductor composition, dielectric type and jacket type.

RG was originally a unit indicator for bulk radio frequency (RF) cable in the U.S. military's Joint Electronics Type Designation System. The suffix /U meansfor general utility use. The number was assigned sequentially.

The RG unit indicator is no longer part of the JETDS system (MIL-STD-196E) and cable sold today under the RG-6 label is unlikely to meet military specifications. In practice, the term RG-6 is generally used to refer to coaxial cables with an 18 AWG center conductor and 75 ohm characteristic impedance.

The type of RG-6/U coaxial cable?

The most commonly recognized variety of RG-6 is cable television (CATV) distribution coax, used to route cable television signals to and within homes, and RG-6 type cables have become the standard for CATV, mostly replacing the smaller RG-59, in recent years.

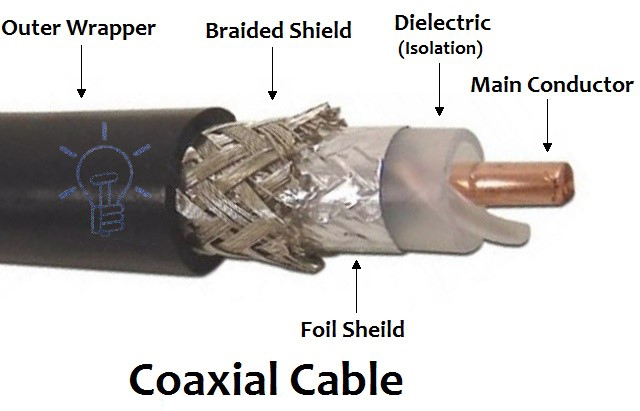

CATV distribution coax typically has a copper-clad steel (CCS) center conductor and a combination aluminum foil/aluminum braid shield, typically with low coverage (about 60%). RG-6 type cables are also used in professional video applications, carrying either base band analog video signals or serial digital interface (SDI) signals.

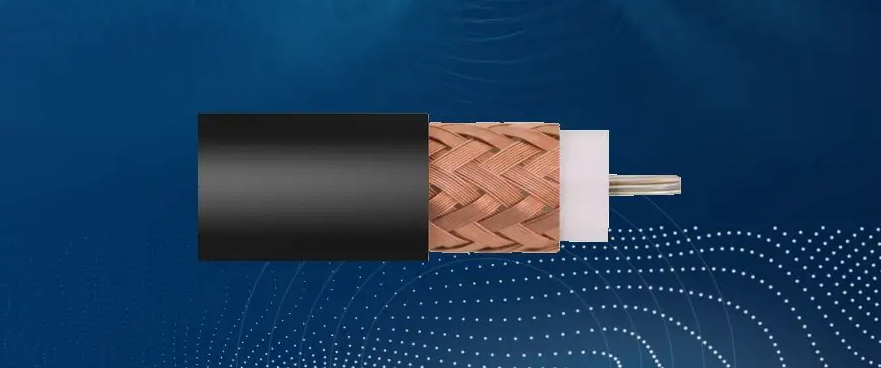

In these applications, the center conductor is ordinarily solid copper, the shielding is much heavier (typically aluminum foil/95% copper braid), and tolerances are more tightly controlled, to improve impedance stability.

RG-6 cables typically are fitted with various types of connector at each end; in CATV distribution applications, these are typically F connector style; in professional base band video, BNC connectors; and in consumer audio/video applications other than RF and CATV, RCA plugs.

Note RG6/U is also larger than its family RG6 as RG6U measures 7mm OD.

RG-6 is available in three different types designed for various applications. "Plain" or "house" wire is designed for indoor or external house wiring. "Flooded" cable is infused with water blocking gel for use in underground conduit or direct burial. "Messenger" or "Aerial" may contain some waterproofing but is distinguished by the addition of a steel messenger wire along its length to carry the tension involved in an aerial drop from a utility pole.

"Plenum" wire comes with a special Teflon outer jacket designed for use in ventilation ducts to meet fire codes.
