Application：

Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right-hand lay.

Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.

To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for crosslinked polyethylene(XLPE) insulated conductors.

Standard:

Basic design to IEC 60502 / AS/NZS 3599-1 standard

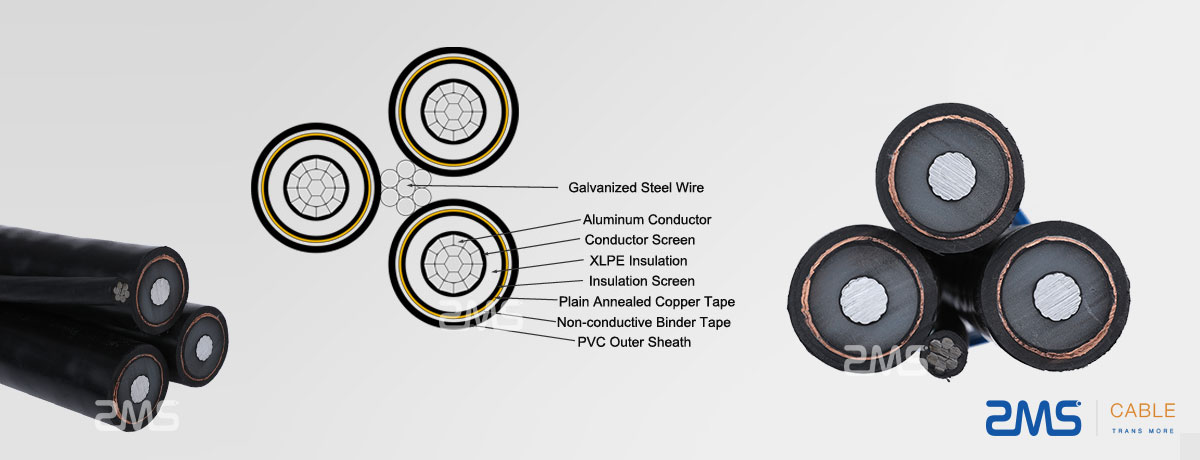

Construction Parameters

Rated Voltage: 6.35/11kV

Phase Conductor: Circular compacted stranded H68 aluminum to BS2627.

Conductor Screen: Extruded semi-conductive layer.

Insulation: XLPE.

Insulation Screen: Extruded semi-conductive layer.

Metallic Screen(optional): copper tape screen.

Separator: Semi-conductive swellable tape.

Outer Sheath: HDPE.

Support Conductor: Galvanized steel wires.

Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right-hand lay.

NO. Cores X Nominal Cross Section	Phase Conductor		Messenger Suspension Unit
NO. Cores X Nominal Cross Section	Stranding	Nominal Sectional Area	Stranding	Nominal Sectional Area	Breaking Load
No.×mm2	No.×mm	mm2	No.×mm	mm2	KN
3X50 + 1X25	19/1.78	50	7/3.0	50	60
3X70 + 1X50	19/.14	70	7/3.15	50	62
3X95+ 1X50	19/2.52	95	7/3.0	50	60
3X185+1X120	37/2.52	185	7/4.67	120	150
3X150 +1X50	37/2.25	150	7/3.15	50	62
3X240 +1X50	61/2.25	240	7/3.15	50	62
