0361 TQ Rubber Welding cable 1000V is For the transmission of high currents from the electric welding machine to the welding tool.
Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, and shipbuilding, for manually and automatically operated line and spot welding machines.
BS 638 Part 4, BS EN/IEC 60332-1-2

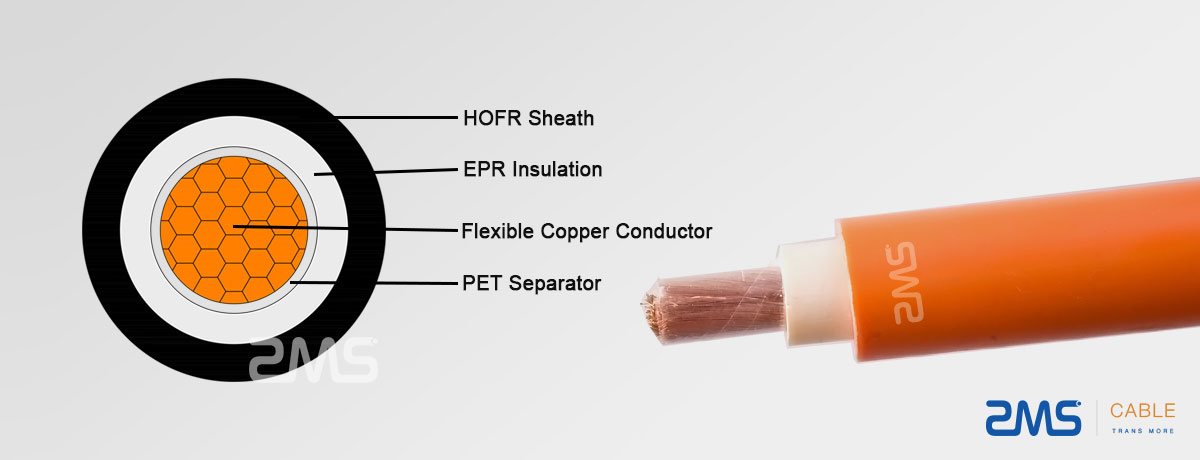

Conductor: 16mm2 to 95mm2: Class 6 extra flexible copper conductor according to BS EN 60228 (previously BS 6360) 120mm2 and above: Class 5 flexible copper conductor
Separator: PET (Polyester Tape)
Insulation: EPR (Ethylene Propylene Rubber) Type GP4 according to BS 7655
Sheath: HOFR (Heat and Oil Resistant and Flame Retardant) Type EM5 according to BS EN 50363
Sheath color: Black or Orange
Technical data
Operating voltage:1000V (450V for non-welding applications if suitably protected from
mechanical damage)
Operation temperature:–20°C to + 85°C
Bending radius: Flexed: 6 x overall diameter
Special version upon request
The aluminum conductor is also available
Sheath color can also be orange
Heat and Oil Resistant
Flame Retardant
| Size | Stranding Class | Stranding | Thickness of Sheath | Nominal O/Dia. | Weight | Max Duty Cycle | Max Duty Cycle | Max Duty Cycle |
|---|---|---|---|---|---|---|---|---|
| MM | No/Dia. | mm | mm | Kg / Km | 100% | 60% | 30% | |
| 16 | 6 | 513 / 0.20 | 2 | 10.9 | 212 | 135 | 175 | 245 |
| 25 | 6 | 783 / 0.20 | 2 | 12.5 | 300 | 180 | 230 | 330 |
| 35 | 6 | 1107 / 0.20 | 2 | 14 | 403 | 225 | 290 | 410 |
| 50 | 6 | 1566 / 0.20 | 2.2 | 16 | 560 | 285 | 370 | 520 |
| 70 | 6 | 2214 / 0.20 | 2.4 | 18.6 | 776 | 355 | 460 | 650 |
| 95 | 6 | 2997 / 0.20 | 2.6 | 21.2 | 1035 | 430 | 560 | 790 |
| 120 | 5 | 608 / 0.50 | 2.8 | 23.1 | 1300 | 500 | 650 | 910 |
| 185 | 5 | 925/0.50 | 3.2 | 29 | 2050 | 660 | 850 | 1200 |
| Nominal Cross Sectional Area | Maximum Resistance at 20°C Tinned | Voltage Drop (For Guidance Only) | ||
|---|---|---|---|---|
| Volts Per 100 Amp Per 10 Metres | ||||
| DC Current | ||||
| 20°C | 60°C | 85°C | ||
| mm2 | ohms/Km | V | V | V |
| 16 | 1.24 | 1.24 | 1.43 | 1.56 |
| 25 | 0.795 | 0.795 | 0.92 | 0.998 |
| 35 | 0.565 | 0.565 | 0.654 | 0.709 |
| 50 | 0.393 | 0.393 | 0.455 | 0.493 |
| 70 | 0.277 | 0.277 | 0.321 | 0.348 |
| 95 | 0.21 | 0.21 | 0.246 | 0.264 |
| 120 | 0.164 | 0.164 | 0.19 | 0.206 |
| 185 | 0.108 | 0.108 | 0.125 | 0.136 |
*Note:
The values for AC Current may be much higher, depending on the configuration of the cables.
