Low-voltage lv ABC cable, designed for overhead power lines and room entrance wires with a rated AC pressure of 1kv and below. It has less installation, maintenance, and operating costs, which can achieve greater economic loss and provide higher security and reliability.

The ZMS cable supplier will also prioritize your specific cable needs so that we can provide a professional cable sales representative to customize the right ABC Wire product for you.

We also have a 6.5-35KV Medium Voltage ABC Cable.

Medium voltage ABC overhead cables are widely used in urban, forest, and coastal areas for power grid transformation and are used for overhead power transmission. ZMS’s medium voltage cables are designed to build a more reliable, efficient, and cost-effective system. We evaluate the quality and technical specifications to ensure that our cable systems are adapted to your distribution network standards.

Application:

This is a kind of climate-bearable PVC, HDPE, and XLPE insulated aerial cables of copper core, aluminum core, or aluminum alloy core, suitable for overhead power lines of AC rated voltage Uo/U 0.6/1KV and below.

It is widely used in power transmission lines and electricity distribution lines with various voltage levels because they have such good characteristics as simple structure, convenient installation, and maintenance, and a low-cost large transmission capacity. And they are also suitable for laying across rivers valleys and places where special geographical features exist.

Standard:

IEC 61089, BS 7870, DIN 48201, ASTM B399, BS EN50183, NFC33-209

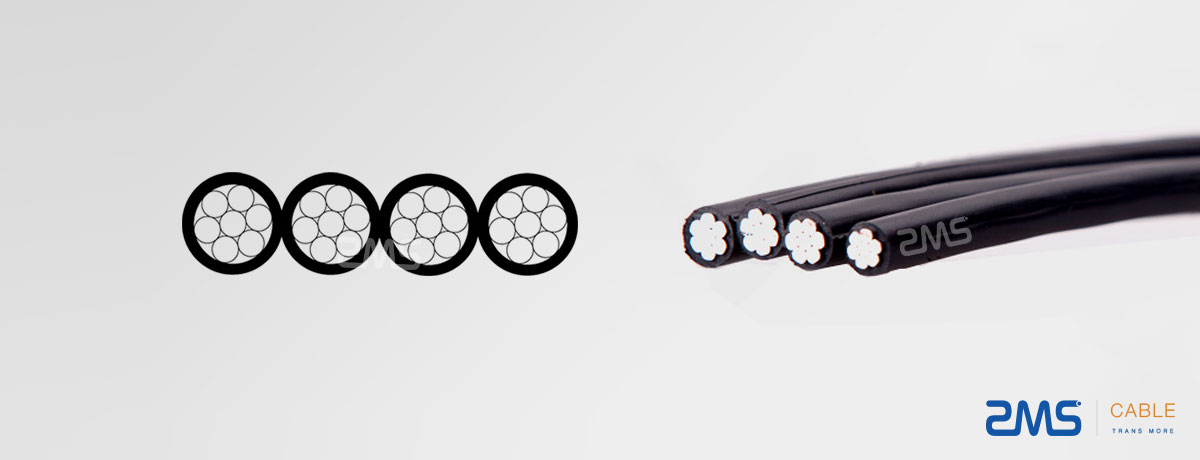

Construction:

Conductor: copper, aluminum, aluminum alloy

Insulation: PVC, HDPE, XLPE

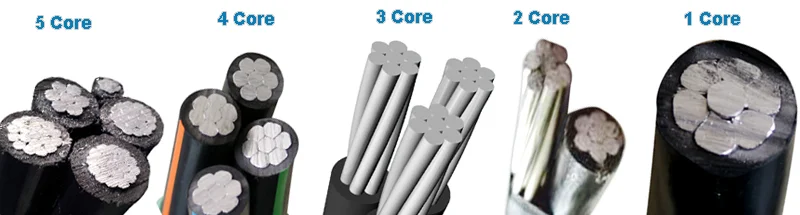

multi core.png

If you don’t know how to choose the products you need or don’t find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable.

You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS Cable Supplier has many quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.

Technical parameters:

Table 1 : Technology requirements of copper core ABC insulated cable

Nominal cross-section area of conductor(mm2)	Single wire Min. No of conductor	Conductor O.D.(reference value)/mm	Nominal thickness of insulation(mm)
10	6	3.8	1.0
16	6	4.8	1.2
25	6	6.0	1.2
35	6	7.0	1.4
50	6	8.4	1.4
70	12	10.0	1.4
95	15	11.6	1.6
120	18	13.0	1.6
150	18	14.6	1.8
185	30	16.2	2.0
240	34	18.4	2.2

The Max. Resistance of conductor at 20°C(Ω/km)		The Min, resistance of insulation at rated temperature		Breaking load of single core
Hard copper	Soft copper	70°C	90°C	Hard copper
1.906	1.83	0.0067	0.67	3471
1.198	1.15	0.0065	0.65	5486
0.749	0.727	0.0054	0.54	8465
0.540	0.524	0.0054	0.54	11731
0.399	0.387	0.0046	0.46	16502
0.276	0.268	0.0040	0.40	23461
0.199	0.193	0.0039	0.39	31759
0.158	0.153	0.0035	0.35	39911
0.128	0.124	0.0035	0.35	49505
0.1021	0.0991	0.0035	0.35	61846
0.0777	0.0754	0.0034	0.34	79823

Table 2: Technology requirements of aluminum core, aluminum alloy core ABC insulated cable

No.section area of conductor (mm2)	Single wire Min. No Of conductor	Conductor O.D. (reference value)/mm	Cable Max. Average outer diameter(mm)

10	6	3.8	6.5
16	6	4.8	8.0
25	6	6.0	9.4
35	6	7.0	11.0
50	6	8.4	12.3
70	12	10.0	14.1
95	15	11.6	16.5
120	15	13.0	18.1
150	15	14.6	20.2
185	30	16.2	22.5
240	30	18.4	25.6
300	30	20.8	27.2
400	53	23.2	30.7

The Max. Resistance of conductor at 20°C (Ω/km)		The Min. resistance of insulation at rated temperature		Breaking load of single-core
Alumiunm	Aluminum alloy	70°C	90°C	Aluminum	Aluminum alloy
3.08	3.574	0.0067	0.67	1650	2514
1.91	2.217	0.0065	0.65	2517	4022
1.20	1.393	0.0054	0.54	3762	6284
0.868	1.007	0.0054	0.54	5177	8800
0.641	0.744	0.0046	0.46	7011	12569
0.443	0.514	0.0040	0.40	10354	17596
0.320	0.371	0.0039	0.39	13727	23880
0.253	0.294	0.0035	0.35	17339	30164
0.206	0.239	0.0035	0.35	21033	37706
0.164	0.190	0.0035	0.35	26732	46503
0.125	0.145	0.0034	0.34	34679	60329
0.100	0.116	0.0033	0.33	43349	75411
0.0778	0.0904	0.0032	0.32	55707	100548
