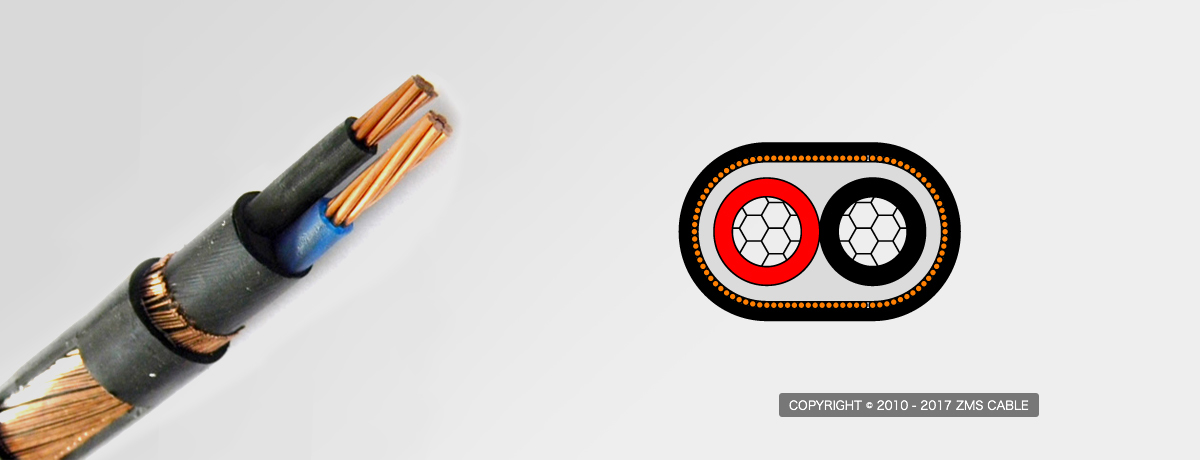

The sheathed screening cable is used for control, loop control & line protection.
IEC502, IEC332-3
Conductor: Copper Conductor
Insulation: PVC
Cable Screen: Copper (Plastic) Or Aluminum (Plastic) Composite Tape, Copper Wire Braided
Sheath: PVC
Sheath Color: Black Or Gray (Bespoke Cable)
Bending Radius: Single-Core: 20D ± 0.05, Multi-Core: 15D ± 0.05
Temperature Rating: 0℃ to 90℃
Type description application occasion of the screen power cable
Shielded flexible control cables are part of our extensive shielded control cable inventory, and also are designed to withstand bending during installation.
Therefore, its flexibility can be provided to many industries such as manufacturing, construction, power, and power distribution.

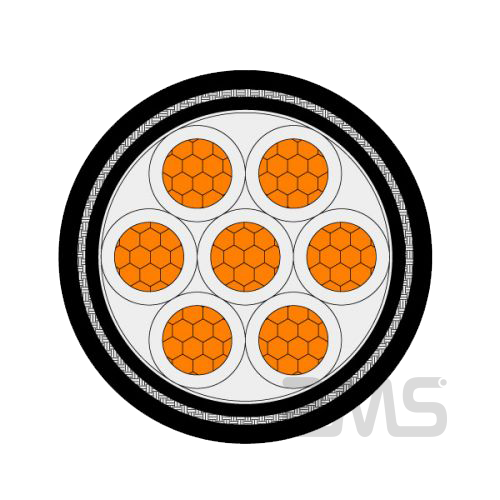

CONSTRUCTION
Conductor: Copper conductor
Insulation: PVC
Power Cable Screen: Copper (Plastic) Or Aluminum (Plastic) Composite Tape, Copper Wire Braided
Sheath: PVC
Sheath Color: Black Or Gray (Bespoke Cable)
Bending Radius: Single-Core: 20D ± 0.05, Multi-Core: 15D ± 0.05
Temperature Rating: 0℃ to 90℃
STANDARDS: IEC502, IEC332-3
Industrial applications of our ZMS unshielded flexible control cables include communications, computers, instrumentation, audio, control, and data transmission.
And it is suitable for monitoring electrical equipment, station control circuits, and outdoor, dry, or wet cable rack installation.
CONSTRUCTION
Conductor: Copper conductor
Insulation: PVC
Sheath: PVC
Sheath Color: Black or Gray (Bespoke cable)
Single Core: 20D ± 0.05, multicore: 15D ±0.05
Temperature Rating: 0℃ to 90℃
STANDARDS: IEC502, IEC332-3
The metal shield is outside the semiconductor and is a copper-skin material, such as high-voltage cables.
The shield power cable outside the cable is aluminum or lead, iron material, such as the usual said armored cable, etc.
The general order of cable structure is conductor, main insulation, a semiconductor layer, shield, insulation filler, armor sheath, and outer plastic protective layer.
Grounding is usually done through the preparation of copper braid with tin solder to the shield layer, and then to the grounding pole.
The above instructions will help you to select the right cable on this page.
If you don't find the cable you need on this page, don't worry, you can always contact us, we have the most professionally screened cable sales representatives to serve you and solve your problems.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc.
We will serve you wholeheartedly. ZMS Cable Supplier wire and cable manufacturers have evolved over the years. It adheres to the business philosophy of unity, pragmatism, integrity, and innovation. It has established a complete quality assurance system and also has multiple quality certificates: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your need.
ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils.
The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
| Description | Application Occasion |
|---|---|
| PVC insulation & sheath and weave to shield | The gearing is in the room, cable, piping in and request the protective and fixed situation in electric field |
| PE (XLPE) insulation shield cable | It is suitable for the room, electric field. |
| PVC / shield cable | It is request the protective and fixed situlation in electric field. |
| PVC / control soft cable | Move and request the situation that electric field shield. |
| (PVC Cable) PVC Insulated And Sheathed Screen Power Cable | |
|---|---|
| Nominal cross sectional area of conductor (mm2) | Approx, overall diameter (mm) |
| 2×0.75 | 8.0 |
| 2×2.5 | 10.5 |
| 3×0.75 | 8.4 |
| 3×6 | 15.0 |
| 4×0.75 | 9.0 |
| 4×6 | 16.5 |
| 8×0.75 | 11.5 |
| 8×6 | 20.0 |
| 16×0.75 | 16.0 |
| 16×2.5 | 21.0 |
| 30×0.75 | 19.0 |
| 30×2.5 | 29.5 |
