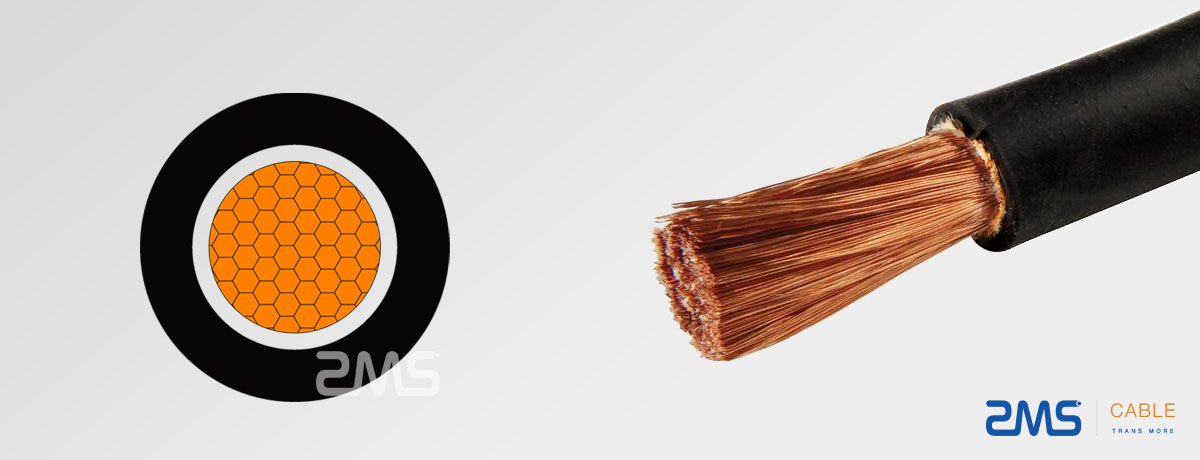

This welding cable copper rubber is used as a connecting cable or welding handle cable between welding tools and rubber welding cable welding equipment such as HV cable welding machine and is suitable for mobile installations in harsh conditions, such as automotive and marine construction, conveyors, and assembly lines.
This cable is very reliable when exposed to inert gases, ozone, light, oil, etc.
It is suitable for installation in wet, dry indoor areas and can also be installed outdoors. It is also suitable for installation connections in hand or automatic assembly lines and spot welding machines, etc.
The robust construction allows these cables to withstand both cold and heat as well as combustion.
BS EN 50525-2-81
Conductor: Generally to Class 6 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Separator: PET (Polyester Tape)
Sheath: Rubber compound, Type EM5 according to BS EN 50363
Operating Voltage: 100V
Operation Temperature: –40°C to + 85°C
Insulation Resistance: > 20 MOhm x Km
Minimum Bending Radius: 10x cable outer diameter
Special Version Upon request
RD-RED Color Codes
E-Black Color Codes
Resistant to low and high temperatures, ozone and radiation, oils, acids, fats, and patrols.
Special oil resistance, chemical resistance, small bending radius, better flexibility, cold resistant and flame retardant, UV resistance, ozone resistance, no harmful substances, RoHS compliance, CE compliant, etc.
If you don’t know how to choose the products you need or don't find the cable type and size you need on this page, don’t worry. Contact us and send us your requirements, and we can help you choose the right cable. You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly. ZMS Cable Supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
While ZMS provides high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers' transportation costs.
ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
| No. of cores | Nominal cross section area | Nominal thickness of insulation | Nominal overall diameter | Nominal weight |
|---|---|---|---|---|
| mm2 | mm | mm | kg/km | |
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
| Construction | Conductor Resistance | Current Carrying Capacity | Operating Capacity | |
|---|---|---|---|---|
| 20℃ | Current Rating For Single Cycle Operatuon Over A Maximum Period Of 5 Minutes (Amps) | |||
| No.xmm2 | Ω/km | 100% | 85% | 60% |
| 10 | ≤1.91 | 100 | 103 | 108 |
| 16 | ≤1.21 | 135 | 145 | 175 |
| 25 | ≤0.78 | 180 | 195 | 230 |
| 35 | ≤0.554 | 225 | 245 | 290 |
| 50 | ≤0.386 | 285 | 305 | 365 |
| 70 | ≤0.272 | 355 | 385 | 460 |
| 95 | ≤0.206 | 430 | 470 | 560 |
| 120 | ≤0.161 | 500 | 540 | 650 |
| 150 | ≤0.129 | 580 | 630 | 750 |
