Bare conductor ACSR, also known as Aluminum Conductors Steel Reinforced(ACSR).
Aluminum Conductors and Steel Reinforced(ACSR) are used as overhead power lines, transmission lines, and distribution lines.

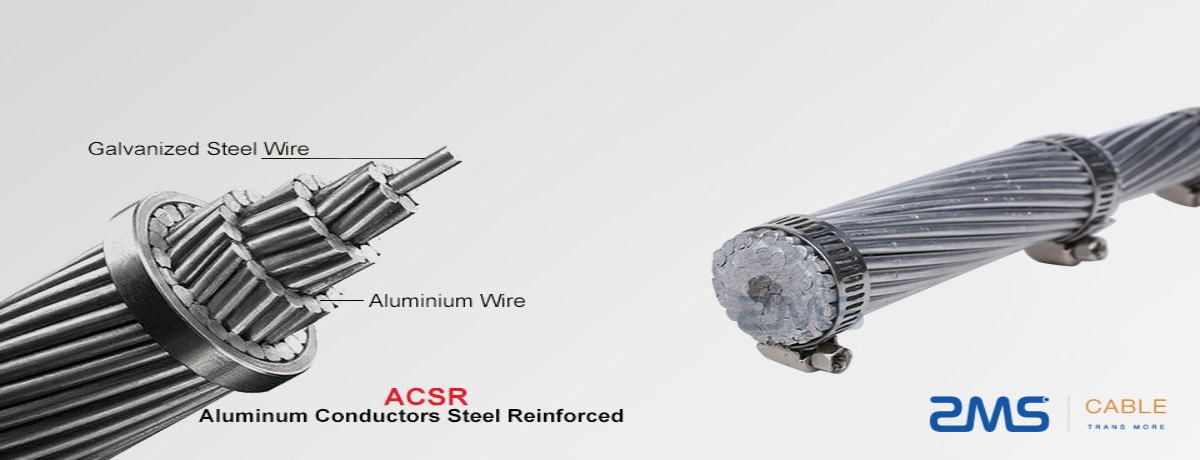

As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC-grade Aluminum Wires over a high-strength coated steel core.
The core may be single wire or stranded, depending on the size.
Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.
ACSR has long been widely used as overhead high-tension transmission lines and has an established reputation for economy and dependability.

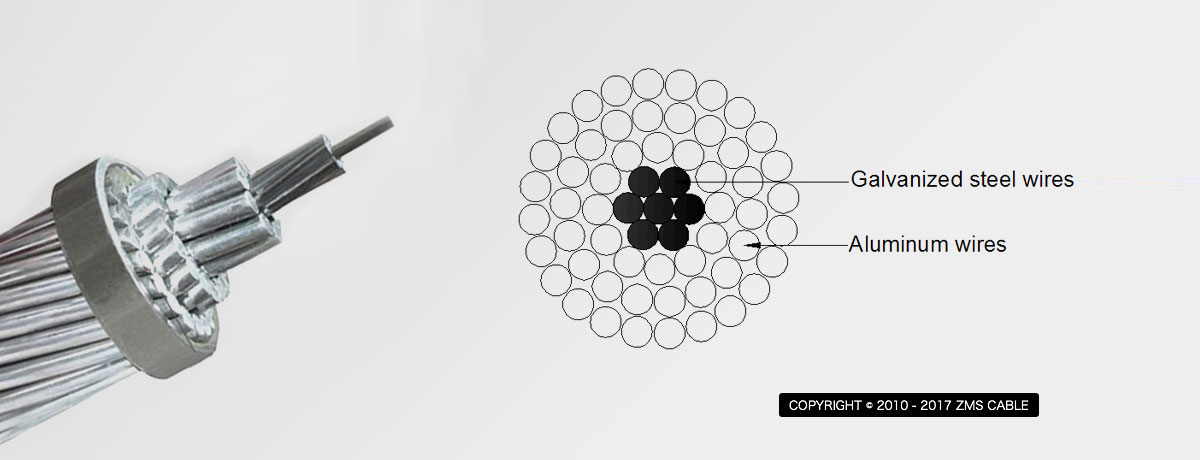

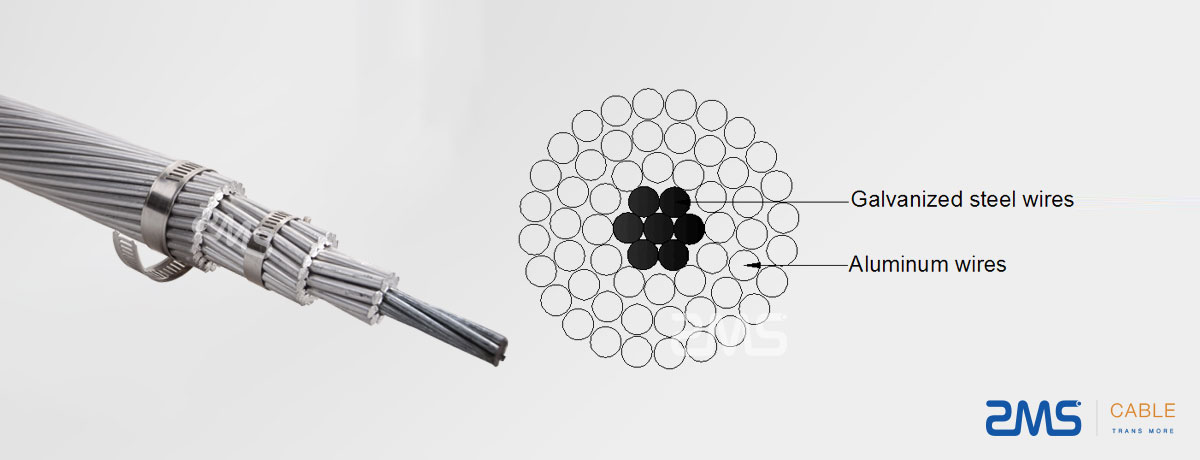

The illustration below shows typical standard sizes and stranding patterns.
The structure of ACSR cable is one of the very simple ones among many cables.
ACSR power cables are concentrically stranded conductors with one or more layers of hard-drawn 1350-H16 aluminum wire on a galvanized steel wire core.
Depending on the size, the core can be single or stranded.
The steel wire can be A or B-grade galvanized as a corrosion protection treatment.
ACSR overhead aluminum power cables are designed to meet the electrical and mechanical strength requirements of transmission or distribution cables.
Appropriate designs can be provided in combination with the number of aluminum wires and galvanized steel wires.
The outer strand is high-purity aluminum.
It is chosen because it has good electrical conductivity, is lightweight, low cost, has corrosion resistance, and has good mechanical stress.
The intermediate wire is steel-stranded wire.
It is chosen for its added strength and to help support the weight of the conductor.
ASTM — B 230, ASTM — B 231, TS IEC 1089, DIN48201, BS 215.
The following is one of the ACSR conductor types——ACSR BS215
This is due to the fact that steel is stronger than aluminum, so it increases the mechanical tension of the conductor.
Also, steel has a lower suitable elastic and inelastic deformation
Steel has these properties because of the mechanical load and the lower coefficient of thermal expansion under the current load.
These characteristics make ACSR sag much less than all aluminum conductors.
Another reason is the low carbon content of the steel.
Therefore the steel has high weldability.
This facilitates the need for steel to be used in many parts of machine components and manufacturing industries after machining or during assembly and is their first choice.
● The simple structure is flat
● High transmission capacity
● Outstanding tensile strength
● Long service life
● High flexibility
● The current ratings of ACSR conductors are generally available in low and medium voltage and high voltage.
The above is a brief description of the advantages of ACSR conductors. In fact, it is highly recommended for its performance and advantages.
ACSR is an abbreviation for Aluminum Conductor Steel Rebar.
There are many types of ACSR conductors in common use.
Different ACSR conductor sizes have different numbers of aluminum conductors, steel strands, overall area, current ratings, and short circuit ratings.
Short-circuit withstand capability of conductors
This should be equal to or greater than the fault rating of the transmission line. There should also be an ACSR current carrying capacity.
Current rating of the conductor
This should be equal to or greater than the continuous current requirement of the transmission line.
A voltage level of the transmission line
The general practice is to use conductors of a specific voltage level.
For example, ACSR Panther conductors can be used for 66 kV or 132 kV transmission lines.
In addition to ACSR, ZMS cable ACSR conductors have other ACSR conductor types, such as AAC, AAAC, etc., which are also used for transmission lines.
WARM TIPS
If you don't know how to choose the right cable product, or if you don't find the type and size of cable you need on this page.
Don't worry, please contact us.
You can send us your requirements and we can help you choose the right cable.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shielding type, armor type, etc.
Or you can also provide the cable installation environment, application requirements, etc.
We will serve you wholeheartedly.
SERVICES
ZMS cable suppliers have several quality certifications.
ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
As a professional ACSR cable manufacturer, ZMS has a wide range of cable and conductor products for you to choose from.
We will provide attentive service and professional project solutions to everyone who needs them.
ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards.
If you need the products on this page, we will provide you with the right ACSR conductor price.
PACKAGING
The packaging of ZMS cables is provided in wooden rolls, corrugated cartons, and reels.
The cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.
We can print the required markings on the outside of the drums with waterproof material according to the customer's requirements.
| Code name | Nominal aluminum area mm2 | Stranding structure | Total sectional area | Overall Diameter | |||
| Al. No. | Al. Dia. | St. No. | St. Dia | mm2 | mm | ||
| Mole | 10 | 6 | 1.50 | 1 | 1.50 | 12.39 | 4.50 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 24.43 | 6.33 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 30.62 | 7.08 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 36.88 | 7.77 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 42.77 | 8.37 |
| Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 49.48 | 9.00 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 61.70 | 10.05 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 73.71 | 10.98 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 100.30 | 12.95 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 87.29 | 11.97 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 116.20 | 13.95 |
| Racoon | 75 | 6 | 4.10 | 1 | 4.10 | 92.40 | 12.30 |
| Otter | 80 | 6 | 4.22 | 1 | 4.22 | 97.86 | 13.98 |
| Cat | 90 | 6 | 4.50 | 1 | 4.50 | 111.30 | 15.90 |
| Hare | 100 | 6 | 4.72 | 1 | 4.72 | 122.50 | 17.50 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 118.50 | 14.15 |
| Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 126.20 | 14.57 |
| Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 148.10 | 15.81 |
| Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 152.20 | 15.89 |
| Congar | 125 | 18 | 3.05 | 1 | 3.05 | 137.50 | 15.25 |
| Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 161.70 | 16.52 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 167.50 | 16.75 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 194.90 | 18.13 |
| Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 194.50 | 18.05 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 326.20 | 19.53 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 222.30 | 19.30 |
| Panther | 200 | 30 | 3.00 | 7 | 3.00 | 261.50 | 21.00 |
| Lion | 225 | 30 | 3.18 | 7 | 3.18 | 294.20 | 22.26 |
| Bear | 250 | 30 | 3.35 | 7 | 3.35 | 325.60 | 23.45 |
| Goat | 300 | 30 | 3.71 | 7 | 3.71 | 400.00 | 25.97 |
| Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 461.40 | 27.93 |
| Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 421.50 | 26.73 |
| Bizon | 350 | 54 | 3.00 | 7 | 3.00 | 431.30 | 27.00 |
| Deer | 400 | 30 | 4.27 | 7 | 4.27 | 529.50 | 28.89 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 484.50 | 28.62 |
| ELK | 450 | 30 | 4.50 | 7 | 4.50 | 588.30 | 31.50 |
| Camel | 450 | 54 | 3.35 | 7 | 3.35 | 536.80 | 30.15 |
| Moose | 500 | 54 | 3.53 | 7 | 3.53 | 597.20 | 31.77 |
| Finch | 500 | 54 | 3.65 | 19 | 2.29 | 642.90 | 33.35 |
