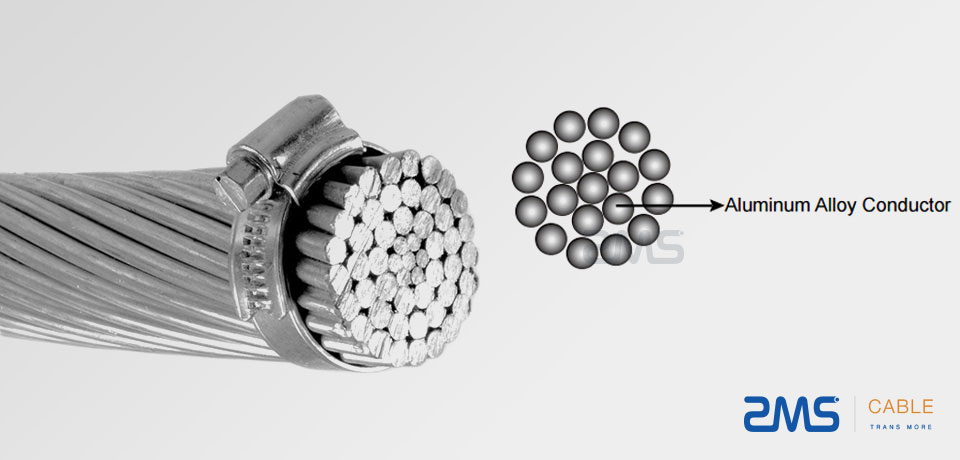

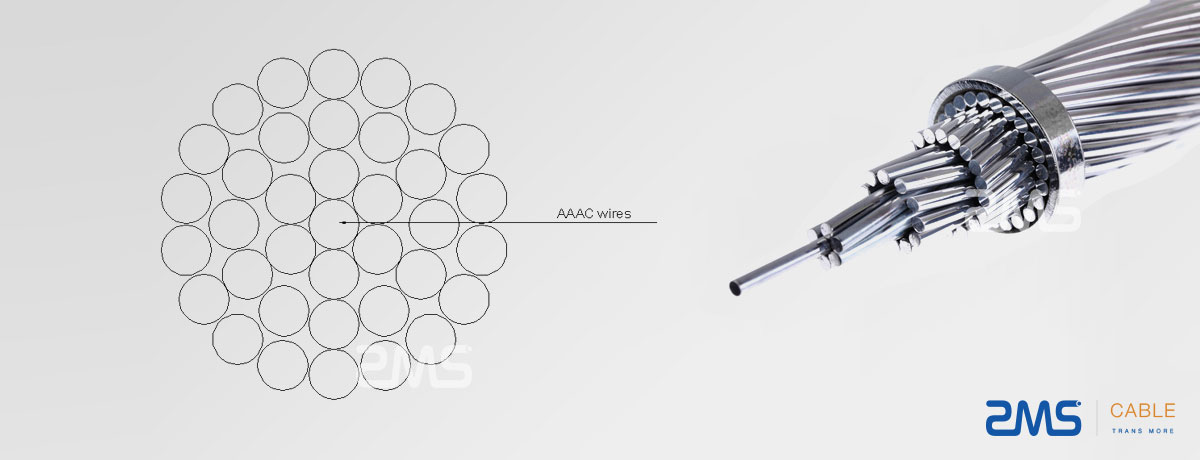

All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductors consisting of aluminum-alloy wires available in both single layer and multi-layer constructions.
Compared to AAC and ACSR, AAAC has better strength and weight, better electrical properties, better vertical tensile properties, and better corrosion resistance.
These features have made AAAC more widely recognized and preferred in power distribution and medium and high voltage transmission lines.
All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High, and Extra-High voltage transmission lines.
AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum alloy.
In addition, AAAC conductor aluminum provides a higher corrosion resistance than ACSR conductors.
All Aluminum-Alloy Conductors (AAAC) can be supplied to meet various International Standards as follows:
IEC 61089
ASTM B 399
BS EN 50182
DIN 48201
However, TBEA can also supply a range of alternative designs to meet customer-specified requirements.
Related Products of AAAC Aluminium Conductor:
| Type | Description | No. of Wire | Section Area (mm2) |
| AAC | All Aluminum Conductor | 7~127 | 10~1500 |
| AAAC | All Aluminum Alloy Conductor | 7~91 | 16~1500 |
| ACSR | Aluminum Conductors Steel Reinforced | 7~103 | 16~1250 |
| AACSR | Aluminum Alloy Conductors Steel Reinforced | 7~103 | 16~1250 |
| ACSR | Aluminum Conductors Aluminum Alloy Reinforced | 7~103 | 16~1250 |
| ACSR/AW | Aluminum Conductor Aluminum Clad Steel Reinforced | 7~103 | 16~1250 |
| GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
ZMS overhead power cable company provides a wide range of utility-approved cables and overhead lines to the global transmission, distribution, and power network industries. Every year, we supply overhead wires to Kenya, Rwanda, Bangladesh, and so on.
If you don't know how to choose the cable product you need, or if you don't find the type and size of cable you need on this page.
Don't worry, contact us and send us your requirements, we have the most professional cable sales representatives who can help you choose the right cable.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shielding type, armor type, etc., or you can provide us with the cable installation environment, application requirements, etc. We will serve you wholeheartedly.
ZMS cable supplier has many quality certifications ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
| Type | Description | No. of Wire | Section Area (mm2) |
| AAC | All Aluminum Conductor | 7~127 | 10~1500 |
| AAAC | All Aluminum Alloy Conductor | 7~91 | 16~1500 |
| ACSR | Aluminum Conductors Steel Reinforced | 7~103 | 16~1250 |
| AACSR | Aluminum Alloy Conductors Steel Reinforced | 7~103 | 16~1250 |
| ACSR | Aluminum Conductors Aluminum Alloy Reinforced | 7~103 | 16~1250 |
| ACSR/AW | Aluminum Conductor Aluminum Clad Steel Reinforced | 7~103 | 16~1250 |
| GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
