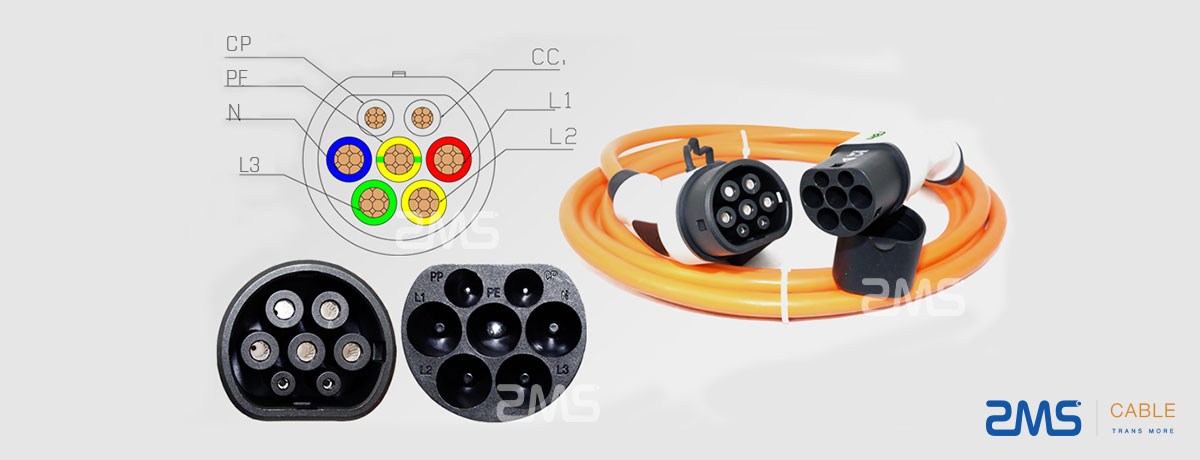

Insert arrangements and functional definition of Charging Cable:
| Mark | Functional definition |
|---|---|
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3- (L3) | AC power |
| 4-(N) | Natural |
| 5-(PE) | PE |
| 6-(CP) | Control confirmation |
| 7-(PP) | Connection confirmation |
1. Charging plug meets 62196-2 IEC2010 SHEET 2-lle standard
2. Product assembly meets GB/T 20234.2-2011 charging mode 3 connection method B2
3. Nice appearance, hand-held ergonomic design, easy plug
4. Reliability of materials, antifoaming, pressure-resistant, abrasion resistance, impact resistance, and high oil.
5. Excellent protection performance, protection grade IP55 (Working condition)
| Rated current | 16A/32A/63A |
| Operating voltage | 250V AC |
| Insulation resistance | >1000M(DC500V) |
| Therminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Vibration resistance | Meet JDQ53.36.1.1-53.36.1.2 requirements |
| Contact impedance | 0.5mMax |
| Mechanical life | no-load plug in/pull out >10000 times |
| Insertion and Extraction Force | 45N<F<80N |
| Shell material | Thermoplastic (Insulator inflammability UL94 V-0) |
| Contact Pin | Copper alloy, silver, or nickel plating |
| Sealing gasket | rubber or silicon rubber |
| Operating temperature | -30°C~+50°C |
1. Mechanical life: no-load plug in/pull out >10000 times
2. Impact of external force: can afford 1M drop and 2t vehicle run over pressure.
1.Rated operating current:16V or 32A
2.Operating voltage:250V
3.Insulation resistance:>1000MO(DC500V)
4.Terminal temperature rise:<50K
5.Withstand voltage:2000V
6.Contact Resistance:0.5mO Max
1. Case Material: Thermoplastic, flame retardant grade UL94V-0
2. Contact bush: copper alloy, silver plating
Environmental performance:
Operating temperature:-30℃~ +50℃
Model selection and the standard wiring:
| Model | Number of inserts | Cable Spec. | Remark |
|---|---|---|---|
| DSIEC2b-EV16P | 7 | 3*2.5mm2+2*0.5mm2 | The length of the cable can be customized |
| DSIEC2b-EV32P | 7 | 3*6mm2+2*0.5mm2 | |
| DSIEC2b-EV63P | 7 | 3*16mm2+2*0.5mm2 |
| Model | Number of inserts | Cable Spec. | Remark |
|---|---|---|---|
| V2-DSS-EV16P | 5 | 3*2.5mm2+2*0.5mm2 | The length of the cable can be customized |
| V2-DSS-EV32P | 5 | 3*6mm2+2*0.5mm2 | |
| V2-DSS-EV70P | 5 | 2*13.3mm2+1*10mm2+2*0.5mm2 |
