The combination of ruggedness and flexibility makes flexible rubber cables ideal for the provision of power to portable electrical equipment and devices.
ZMS Cables has many types of flexible control cables, and flexible rubber electrical cables, including Low Smoke and Halogen Free (LSZH) cables.
It offers healthier and safer performance because it does not emit toxic gases when it burns.
These cables can be used in cable applications for portable power tools and equipment. Shielded flexible control cables can be used for instrumentation control, low-voltage circuit control, and line control protection.
There are also our HOFR cables designed to withstand extreme weather, oil or grease, and mechanical as well as thermal stresses with heat, oil, and flame resistance while using compounds such as ethylene propylene rubber (EPR) and chlorosulfonated polyethylene (CSP) as insulation materials.
These rubber flex cables are suitable for a wide range of applications, including mobile power, light and heavy equipment, and submersible pumps.
Welding rubber cable, for example, provides power from machines to tools for audio-visual equipment and construction site equipment.
ZMS Cables offers a fully detailed range of industrial flexible rubber cables manufactured to a number of British, European, and international standards.
Our portfolio includes cables to BS6195, BS EN 50525-2-21, and BS EN 50525-3-21 as well as VDE and CENELEC (European Electrotechnical Standardization Committee) standards.
For more information on these products, or if you are unable to find the flexible control cable you need, include a list of flexible control cables in various product sizes, conductor, insulation, and shielding types.
Please contact us and we have a professional sales representative available to answer your questions.

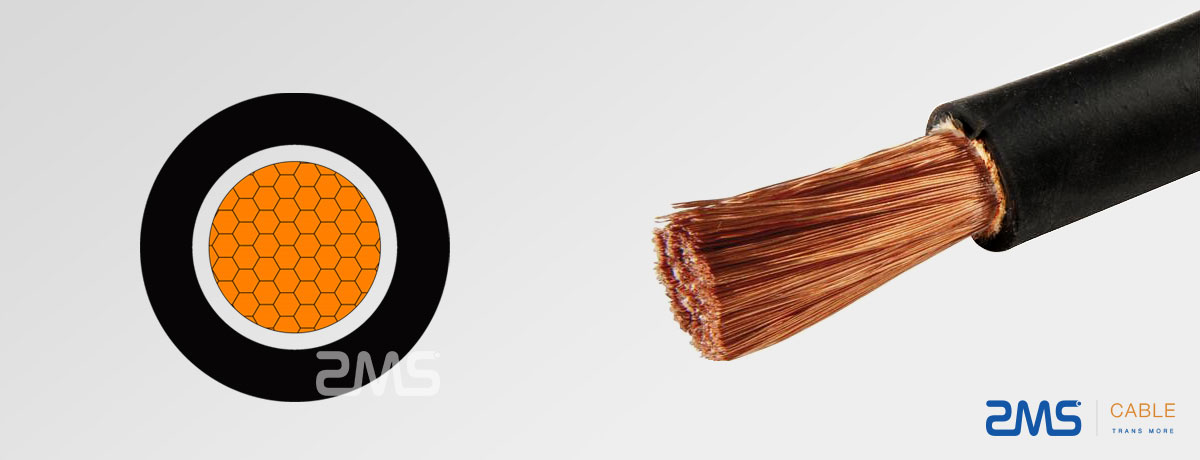

Rubber welding cables are used to connect welding robots in the automotive industry and shipyards, but also for manual or automatic operation of lines and spot welding.
The robust cable construction makes them resistant to low and high temperatures, ozone and radiation, oil, acids, etc.
This cable is particularly flexible and has good bending properties. The sheath material is made of natural rubber or neoprene mixture, which can be applied to different occasions.
CONSTRUCTION
Conductor: Generally to Class 6 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Separator: PET (Polyester Tape)
Sheath: Rubber compound, Type EM5 according to BS EN 50363
TECHNICAL DATA
Operating Voltage: 1000V
Operation Temperature: –40°C to + 85°C
Bending Radius: 6x overall diameter Special Version Upon request
Color Codes: RD-RED Color Codes, E-Black Color Codes
STANDARD: BS EN 50525-2-81

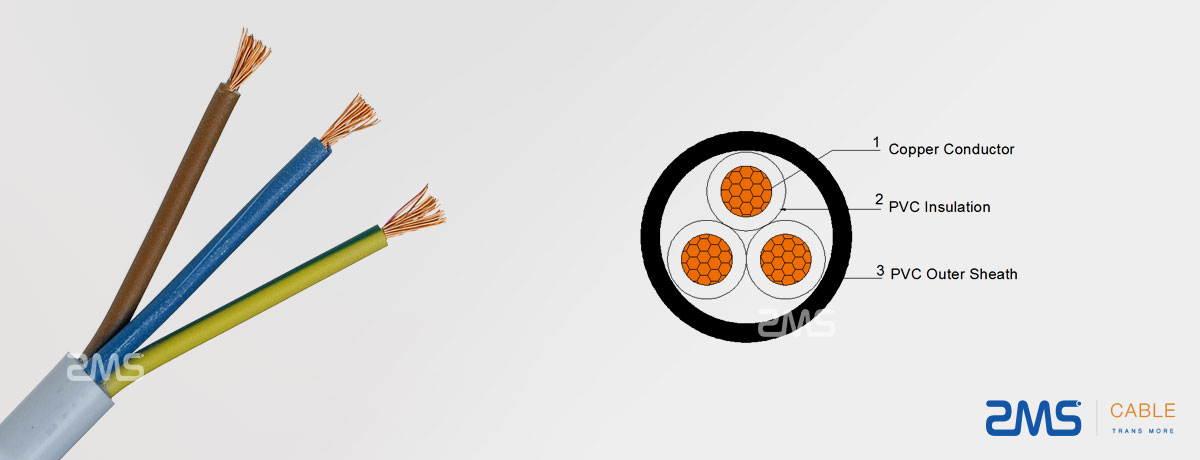

The full name is copper core PVC insulated PVC sheathed flexible wire, also known as light PVC sheathed flexible wire, commonly known as soft sheathed wire, which is a kind of sheathed wire.
Industrial applications for our ZMS unshielded flexible control cable include communication, computer, instrumentation, audio, control, and data transmission.
And it is suitable for monitoring electrical equipment, station control circuits, and outdoor, dry, or wet cable rack installations.
CONSTRUCTION
Conductor: Multi-strand copper conductor, conforming to GB/T 3956 Class 5 (equivalent to IEC60228.5)
Insulation: PVC
Sheath: PVC
Sheath Color: Black or Gray (Bespoke cable)
Single Core: 20D ± 0.05, multicore: 15D ±0.05
Core Marking: ≤5 cores, colored cores; black cores with white numerical numbering, yellow and green ground wires.
Cross-Sectional Area: 0.75-2.5mm2 0.5, 2.5-35mm2 (CCC catalog outside the product, no CCC certification)
Test Voltage: 2000V, 5min.
Temperature Rating: 0℃ to 90℃
STANDARDS: IEC502, IEC332-3
Our quality h07 industrial strength flexible rubber cable is a heavy-duty rubber flexible trailing cable used to provide power, for high flexibility, and to withstand chemical, mechanical, and thermal stresses.
It is suitable for applications such as handling equipment, mobile power, construction sites, stage and audio-visual equipment, port areas, and dams.
In addition, the tough rubber sheath makes this cable suitable for drainage and water treatment, cold or refrigerated environments, and harsh industrial environments.
VOLTAGE RATING
H07RN-F rubber flexible cable is rated at 300 / 500V and is mainly involved in traction cables for the power supply or extension cables for domestic or industrial mains power.
It has high flexibility, and mechanical and thermal stress, and can be used under conditions of frequent handling, dragging, or bending.
CHARACTERISTICS
Temperature Rating Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C, Insulation tested to +90℃
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
Conductor: Class 5 flexible copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: PCP (Polychloroprene)
STANDARDS: Din 57282, VDE 0282, VDE 0615, VDE 0472, and BS6500 (up to 5 cores)
H07V-K cable is used for permanent indoor installation in dry locations in electrical equipment, distribution panels, and distributors.
It should be surface mounted or flush mounted in conduit and is also used for protective fixed installations in or on lighting fixtures.
It is also used for installation in machines with AC voltages up to 1,000 V or DC voltages up to 750 V to ground, but not for under-wall installation.
CONSTRUCTION
Conductor: Flexible copper conductors (Class V) to BS EN 60228:2005 and EN 60228.
Insulating Layer: PVC insulation, type TI-1, in accordance with BS 7655 and HD 21.3S3:1995/A2:2008.
Rated Voltage: 450/750V
Test Voltage: 2,500V A.C.
Maximum Temperature: 70oC
STANDARDS: BS EN 50525-2-31 (previously BS 6004, Cenelec HD21.3) BS EN / IEC 60332-1-2
H03RR-F cable produced by ZMS CABLE has met all international standards such as ASTM, AS, BS, CSA, DIN, IEC, NFC, SS, etc.
The flexible cable H03RR-F for dry areas is also used where special flexibility of the cable is required without any mechanical stress conditions, it allows frequent bending and twisting.
As long as the H03RR-F cable meets the basic specifications of the equipment, it is particularly suitable for applications in small equipment with low mechanical loads and for connecting light domestic equipment such as kitchen appliances, table lamps, vacuum cleaners, office machines, radios, etc.
CHARACTERISTICS
Voltage Rating: 300V
Temperature Rating
Maximum conductor operating temperature: 60°C
Maximum conductor short-circuit temperature: 200°C
Minimum installation temperature: -25°C
CONSTRUCTION
Conductor: Class 6 extra flexible fine-stranded copper
Separator: Tape
Insulation: EPR (Ethylene Propylene Rubber) EI4
Sheath: Rubber EM3
Sheath Colour: Black
STANDARDS
EN 50525-1/2-22, DIN VDE 0282-1/14, BS 7919, HD 308
IEC 60245-1/2/4, HD 516, DIN VDE 0298-4/300
EN 50395, EN 50396, EN/IEC 60228, HD 383, DIN VDE 0295, HD 516 T7c

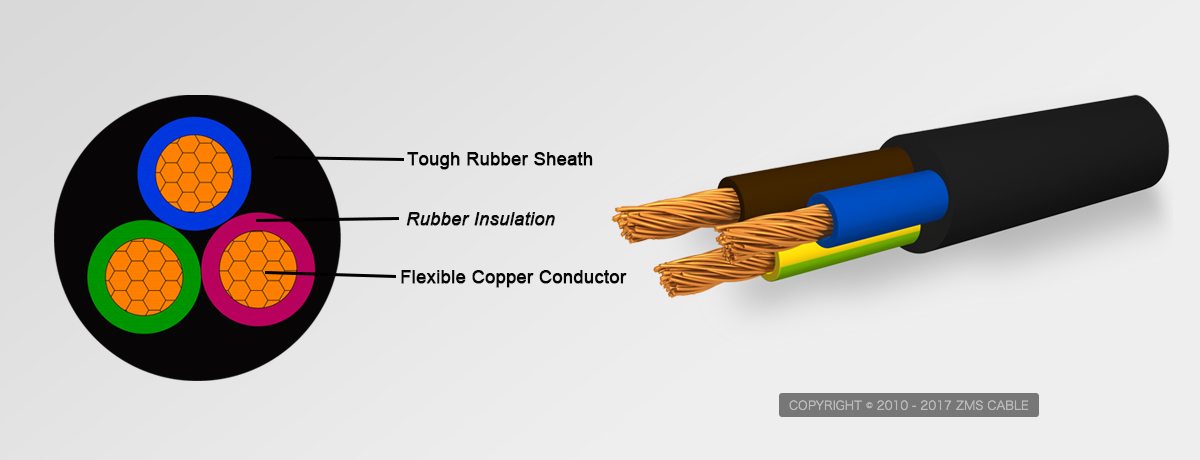

Conductor: Flexible Class5 Tinned Copper
Insulation: Rubber Insulation
Sheath: Tough Rubber
H – Harmonized Approval
5 – 300/500 rated
R – Natural or Synthetic Rubber
R – Natural or Synthetic Rubber
F – Flexible Stranded Conductor
2 Cores: Brown, Blue
3 Cores: Green/ Yellow, Brown, and Blue
4 Cores: Green/ Yellow, Black, Blue, Brown
5 Cores: Green/ Yellow, Black, Blue, Brown, Black
6 Cores: Number coded, Black cores White numbers, + integral Green/ Yellow
Sheath Color: Black or white
Voltage: 300/500V
Test Voltage: 2500V
Operating Temperature Range: – 20℃ to +60℃
Bending Radius: 15 x Overall Diameter
We offer high quality rubber flexible conductors at the best price that meets all other standards. It has various types of h07 flexible rubber cables for sale. And ZMS cables can also design and develop custom flexible rubber cable solutions to meet any of your cables needs at the best price.
As a custom cable manufacturer.
If you don't know how to choose the product you need, or if you don't find the type and size of cable you need on this page. Don't worry, just contact us and send us your requirements, we have the best rubber power cable sales representatives to help you choose the right cable. And We can meet custom flexible multi-core control cables for different needs.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shielding type, armor type, etc.
Or you can provide us with the cable installation environment, application requirements, etc. We will serve you wholeheartedly.
ZMS cable supplier wire and cable manufacturer has established a complete quality assurance system after years of development and adhering to the business philosophy of unity, pragmatism, honesty, and innovation, and also has several quality certificates: ISO9000, ISO9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
ZMS cable has for sale various types of flexible rubber cable. We provide free professional consulting services to provide you with rubber flex cable at an affordable price with one-stop project solution services and rapid product delivery solutions.
We also provide our clients with high-quality wholesale Custom Rubber Cables Compounds.
The packaging of ZMS cables is provided in wooden rolls, corrugated cartons, and reels.
The cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.
We can print the required markings on the outside of the drums with waterproof material according to the customer's requirements.
| No. of cores | Nominal cross section area | Nominal thickness of insulation | Nominal overall diameter | Nominal weight |
|---|---|---|---|---|
| mm2 | mm | mm | kg/km | |
| 1 | 10 | 2 | 9 | 146 |
| 1 | 16 | 2 | 10 | 204 |
| 1 | 25 | 2 | 11.5 | 290 |
| 1 | 35 | 2 | 12.5 | 384 |
| 1 | 50 | 2.2 | 14.5 | 535 |
| 1 | 70 | 2.4 | 16.5 | 716 |
| 1 | 95 | 2.6 | 18.5 | 943 |
| 1 | 120 | 2.8 | 20.5 | 1235 |
| 1 | 150 | 3 | 23 | 1556 |
| Construction | Conductor Resistance | Current Carrying Capacity | Operating Capacity | |
|---|---|---|---|---|
| 20℃ | Current Rating For Single Cycle Operatuon Over A Maximum Period Of 5 Minutes (Amps) | |||
| No.xmm2 | Ω/km | 100% | 85% | 60% |
| 10 | ≤1.91 | 100 | 103 | 108 |
| 16 | ≤1.21 | 135 | 145 | 175 |
| 25 | ≤0.78 | 180 | 195 | 230 |
| 35 | ≤0.554 | 225 | 245 | 290 |
| 50 | ≤0.386 | 285 | 305 | 365 |
| 70 | ≤0.272 | 355 | 385 | 460 |
| 95 | ≤0.206 | 430 | 470 | 560 |
| 120 | ≤0.161 | 500 | 540 | 650 |
| 150 | ≤0.129 | 580 | 630 | 750 |
Dimensions – number of cores x conductor cross-section* | Construction of individual conductor | Conductor diameter | Insulation thickness | Sheath thickness | External diameter | Conductor resistance at 20 °C | Cu weight | Cable weight | Packing** |
nominal | max. | nominal | nominal | min-max. | max. | approx. | |||
N x mm2 | n x mm | mm | mm | mm | mm | Ω/km | kg/km | kg/km | |
1 x 70 | 356 x 0,50 | 13 | 1,6 | 2,6 | 18,6 – 23,3 | 0,272 | 672 | 950 | CUT |
1 x 95 | 485 x 0,50 | 15,1 | 1,8 | 2,8 | 20,8 – 26,0 | 0,206 | 912 | 1202 | CUT |
2 x 1 | 32 x 0,20 | 1,5 | 0,8 | 1,3 | 7,7 – 10,0 | 19,5 | 19,2 | 105 | CUT |
3 G 1,5 | 30G0,25 | 1,8 | 0,8 | 1,6 | 9,2 – 11,9 | 13,3 | 43,2 | 162 | c.100 |
4 G 4 | 56G0,30 | 3,2 | 1,0 | 2,0 | 14,0 – 17,9 | 4,95 | 153,6 | 402 | CUT |
4 G 6 | 84G0,30 | 3,9 | 1,0 | 2,3 | 15,7 – 20,0 | 3,30 | 230,4 | 561 | CUT |
5 G 4 | 56 x 0,30 | 3,2 | 1,0 | 2,2 | 15,6 – 19,9 | 4,95 | 192 | 470 | CUT |
5 G 6 | 84 x 0,30 | 3,9 | 1,0 | 2,5 | 17,5 – 22,2 | 3,30 | 288 | 620 | CUT |
12 G 1,5 | 30 x 0,25 | 1,8 | 0,8 | 2,9 | 17,6 – 22,4 | 13,3 | 172,8 | 560 | CUT |
19 G 1,5 | 30 x 0,25 | 1,8 | 0,8 | 2,5 | 22,5 – 26,6 | 13,3 | 273,6 | 795 | CUT |
24 G 1,5 | 30 x 0,25 | 1,8 | 0,8 | 3,5 | 24,3 – 30,7 | 13,3 | 345,6 | 1000 | CUT |
36 G 1,5 | 30 x 0,25 | 1,8 | 0,8 | 3,8 | 33,0 | 13,3 | 518,4 | CUT |
*) G = With protective yellow / green conductor, x = Without protective yellow / green conductor
**) Packing: c.100 = coil 100 m, CUT = cable in different lengths on drum or reel, possible cutting at the required length
