Screen Cable is a transmission line that uses a metal mesh braid to encase the signal line. The braid is usually red copper or tinned copper. Suitable for transformers and similar equipment.
But there are also many types and characteristics of this cable, such as the flexible control cable with screen you need.
The flexible shielded cable with shielding structure is designed with tinned copper wire braided with a high-density shielding network layer so that the cable has excellent anti-electromagnetic interference performance and bending resistance.
ZMS Cable Group mainly provides complete supply services for distributors and suppliers all over the world. Consulting services, purchasing services, transportation services, and after-sales services are included.
The Control cables for supervisory electrical equipment, station control circuits, and outdoor, suitable installation in dry or wet cable trenches.
The cable has excellent resistance to electromagnetic interference and bending.
It is mainly used as a power supply cable and control connection cable or data signal transmission cable for frequent reciprocal movement and bending under the drag chain or tank chain system.
Also widely used in CNC machine tools, woodworking machinery, engraving machines, cutting machines, robotic arms, glass machinery, and other mechanical equipment systems.

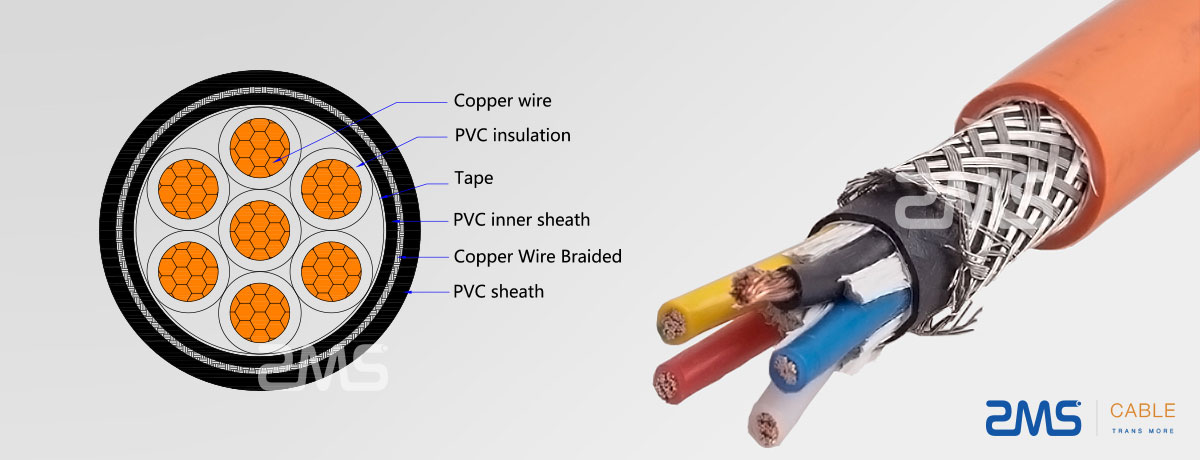

Conductor: flexible copper wire
Insulation: PVC
Identification: different insulation color or Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding Tape: polyester tape
Inner Sheath: PVC
Cable Screen: copper wire braided
Outer Sheath: PVC
Rated Voltage: Cross-section <0.5mm2300/300V.
Cross-Section: 0.5mm2300/500V.
Test Voltage: 2000V.
Temperature Range: -10~+70℃(wider temperature range can be customized).
Bending Radius: 7.5xD (mobile installation).
Standards: IEC502, IEC332-3
Special highly flexible cable screening structure design, so that the cable has excellent resistance to frequent movement bending performance, especially suitable for the system or equipment with drag chain or tank chain under the frequent reciprocal movement bending installation.
High-density tinned copper wire braiding design, so that the cable has excellent anti-electromagnetic interference performance.
The choice of sheath materials to suit the working conditions, to meet the cable in different working conditions and conditions of a wide range of installation applications, so that the cable has excellent wear resistance, weather resistance, tear resistance, aging resistance, shallow water, oil resistance, and other properties.
Especially the polyurethane PUR sheath design, the cable has high strength wear resistance, oil resistance, water resistance, acid and alkali corrosion resistance, temperature resistance, and resistance to mechanical fatigue, especially for the more complex and harsh working conditions and conditions of the installed applications.
| Dimensions - number of cores x conductor cross-section | External diameter | Cu weight | Cable weight | Packing* |
|---|---|---|---|---|
| approx. | approx. | |||
| N x mm2 | mm | kg/km | kg/km | |
| 2 x 0,5 | 5,3 | 32 | 45 | CUT |
| 3 x 0,5 | 5,6 | 39 | 55 | CUT |
| 4 x 0,5 | 6,3 | 46 | 61 | CUT |
| 5 x 0,5 | 6,6 | 52 | 74 | CUT |
| 6 x 0,5 | 7,2 | 66 | 89 | CUT |
| 7 x 0,5 | 7,6 | 68 | 98 | CUT |
| 8 x 0,5 | 8,3 | 80 | 117 | CUT |
| 10 x 0,5 | 9 | 81 | 135 | CUT |
| 12 x 0,5 | 9,5 | 117 | 157 | CUT |
| 14 x 0,5 | 10,4 | 122 | 190 | CUT |
| 16 x 0,5 | 11,2 | 123 | 210 | CUT |
| 18 x 0,5 | 11 | 156 | 217 | CUT |
| 20 x 0,5 | 11,8 | 173 | 240 | CUT |
| 21 x 0,5 | 12,3 | 189 | 250 | CUT |
| 24 x 0,5 | 13 | 236 | 300 | CUT |
| 25 x 0,5 | 13,6 | 250 | 314 | CUT |
| 30 x 0,5 | 14 | 297 | 360 | CUT |
| 32 x 0,5 | 15,2 | 301 | 425 | CUT |
*) Packing: CUT = type of control cable in different lengths on drum or reel, possible cutting at the required length
ZMS has a wide range of cable and conductor screen products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
As the high quality control cable supplier, ZMS cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your need.
ZMS provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
We support the customization of any control flexible cable within the specification range.
If you don't find what you need on this product page, you can send us some information by email, we can customize it according to your needs.
You can provide us with the following information: cable voltage, conductor material, insulation and sheath material, shield type, armor type, etc. or you can provide us with cable installation environment, application requirements, etc. We will serve you wholeheartedly.
ZMS cable supplier has a number of quality certifications: ISO 9000, ISO 9001, ISO14000, ISO14001, ISO18000, CE, IEC, BS, NFC, ASTM, DIN, etc.
While ZMS provides high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
ZMS cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
| Dimensions - number of cores x conductor cross-section | External diameter | Cu weight | Cable weight | Packing* |
|---|---|---|---|---|
| approx. | approx. | |||
| N x mm2 | mm | kg/km | kg/km | |
| 2 x 0,5 | 5,3 | 32 | 45 | CUT |
| 3 x 0,5 | 5,6 | 39 | 55 | CUT |
| 4 x 0,5 | 6,3 | 46 | 61 | CUT |
| 5 x 0,5 | 6,6 | 52 | 74 | CUT |
| 6 x 0,5 | 7,2 | 66 | 89 | CUT |
| 7 x 0,5 | 7,6 | 68 | 98 | CUT |
| 8 x 0,5 | 8,3 | 80 | 117 | CUT |
| 10 x 0,5 | 9 | 81 | 135 | CUT |
| 12 x 0,5 | 9,5 | 117 | 157 | CUT |
| 14 x 0,5 | 10,4 | 122 | 190 | CUT |
| 16 x 0,5 | 11,2 | 123 | 210 | CUT |
| 18 x 0,5 | 11 | 156 | 217 | CUT |
| 20 x 0,5 | 11,8 | 173 | 240 | CUT |
| 21 x 0,5 | 12,3 | 189 | 250 | CUT |
| 24 x 0,5 | 13 | 236 | 300 | CUT |
| 25 x 0,5 | 13,6 | 250 | 314 | CUT |
| 30 x 0,5 | 14 | 297 | 360 | CUT |
| 32 x 0,5 | 15,2 | 301 | 425 | CUT |
