Cable bridges and their applications

In our life, there is a common cable tray cable trough, tray type, and ladder. Here are the characteristics and uses of these three types of bridges with understanding.

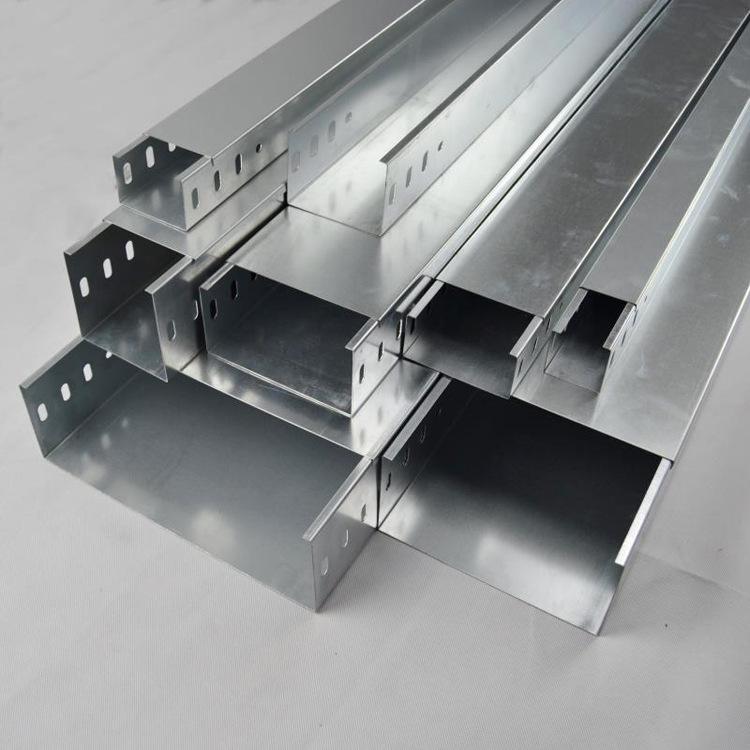

1. Groove-type cable tray

Characteristic:

Trough cable tray in different span under the maximum allowable deformation and was subsequently.

Shield trough cable tray with groove matching supply, other accessories and ladder type, pallet bridge general.

Applicable scope:

A trough cable tray is a fully enclosed type of cable tray. It is most suitable for laying computer cables, communication cables, thermocouple cables, and other highly sensitive system control cables, etc. It has a good effect on the control of the shielding of the cable and the protection of the environment in heavy corrosion.

2. Tray-type cable tray

Characteristic:

Tray type cable tray with different spans under the maximum allowable uniform load and variable

Tray type cable tray, the surface treatment is divided into galvanized and two kinds of paint which can be a special anti-corrosion treatment in a heavily corrosive environment.

Tray type cable tray equipped with shields need the shields in the order note or guard model in accordance with the order, the all parts and cascade type, trough bridge general.

Applicable scope:

Tray type cable tray is petroleum, chemical industry, light industry, telecommunications and other aspects of one of the most widely used. It has the advantages of light weight, large load, beautiful appearance, simple structure, easy installation, etc. It is suitable for the installation of power cables, and the laying of cables.

3. Ladder-type cable tray

CQ1-T ladder type cable tray is based on the relevant information at home and abroad to improve the design. It has the advantages of being lightweight, low cost, easy to install, easy installation, cooling, ventilation, and so on. He is suitable for the laying of large diameter cables, especially suitable for high and low voltage power cables.

Characteristic:

Ladder type cable tray in different spans in the maximum allowed uniform load and deformation

Ladder type cable tray equipped with shields, with shields, need is in the order note or guard model in accordance with the order, the all accessories and tray type, trough bridge general.

Ladder type cable tray and its surface treatment are divided into galvanized, electrostatic spray paint, and three. Special anti-corrosion treatment in a heavy corrosion environment.
