This product is organized and produced according to the standard enterprise equivalent to GB12706, international standard IEC60502, IEC60332, and IEC60754.

The company's corporate standards are not only fully met, but some of the indicators are higher than the above national and international standards.

Flame-retardant cables include all types of cables A, B, C, and low-smoke low-halogen, low-smoke and halogen-free.

Our company can produce high-voltage power cables with other standards according to user needs.

According to the needs of users, we can also design and manufacture cross-linked cables with specific special requirements such as large-section segmented conductors, water-blocking, termite-proof, and rodent-proof.

Use

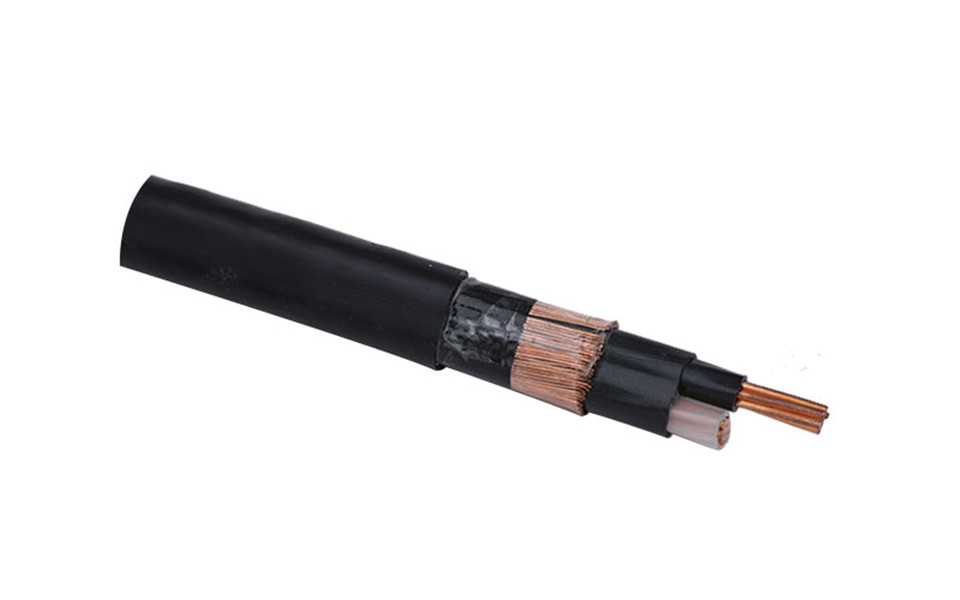

XLPE insulated power cable is suitable for transmission and distribution circuits with AC-rated voltage of 0.6/1KV to 26/35KV for different modes of power transmission.

Execution Standards

The XLPE insulated power cable implements the GB/T12706-2008 standard.

The Use Of Features

1. The long-term high working temperature of the cable conductor does not exceed 90 °C.

2. When a short circuit (long duration does not exceed 5S), the high temperature of the cable conductor does not exceed 250 °C.

3. The ambient temperature when laying the cable is not lower than 0 °C, and the small bending radius is 20 times the diameter of the cable.

Cable Use Conditions

1. XLPE insulated vinyl chloride (polyethylene) sheathed power cable is suitable for laying indoors, in tunnels and pipelines. Cables cannot withstand external mechanical forces.

2. XLPE insulated steel tape armored PVC sheathed power cable is suitable for direct burial underground, and can be laid indoors, in cable trenches, tunnels, and pipelines, cables can withstand certain mechanical external forces, but can not withstand large pulls.
