The BS EN 50525 standard cable usually stands for the PVC flat cable. Flat cable is developed from circular cable, as commonly speaking it usually includes H03VH-H cable, H03VVH2-F cable, twin and earth cable, etc. low voltage cables. Let us get more of the H03VVH2-F cable.

These cables are mainly suitable for the use of small household appliances and light household appliances such as kitchen appliances, table lamps, floor lamps, vacuum cleaners, office equipment, radios, etc. As far as the relevant range of equipment for these cables is concerned, they are not allowed to be used for cooking or heating equipment. Section less than 0.75 square millimeters of electricity. Cables are not suitable for outdoor use and industrial or agricultural machinery applications. The maximum operating voltage is Uo / U 330/330 V in single-phase or three-phase systems and Uo / U 495/495 V in DC systems.

H03VVH2-F representatives of the meaning of H on behalf of HARMONIZED, 03 = 300 / 300V that the rated voltage value, P on behalf of PVC (polyvinyl chloride), which represents the power cord material, H2 represents the power cord structure, H2 = FLAT NON-SEPARATE CABLE. F represents the soft line thin line.

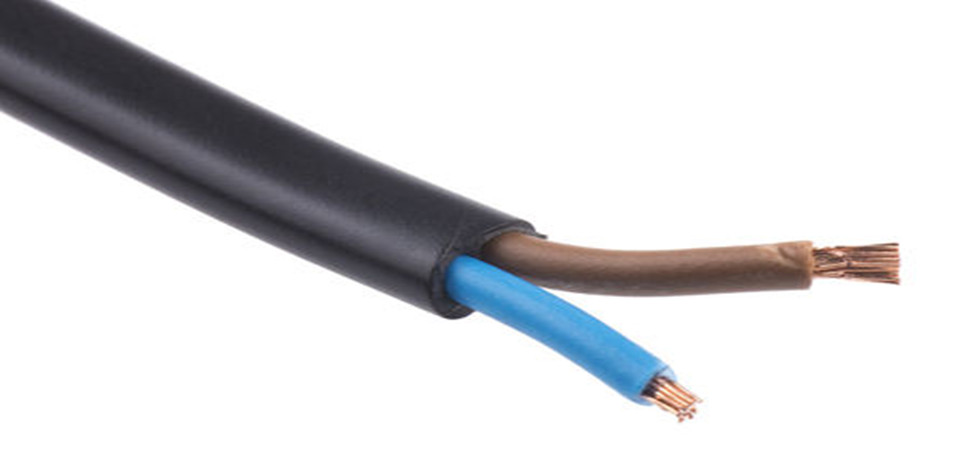

Cable structure:

- flexible bare copper conductor, Complies with DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, and HD 383

- PVC Insulation T12, follow the first part of VDE-0281

- Color coding follows VDE-0293-308

- yellow-green ground wire (three cores and three cores or more)

- PVC outer sheath TM2

Technical characteristics:

- Working voltage: 300/300 V.

- Test voltage: 2000 V.

- Dynamic bending radius: 7.5 xΦ

- Static bending radius: 4 xΦ

- Application of the working temperature: -5 ℃ to +70 ℃

- Static temperature: -40 ℃ to +70 ℃

- Short-circuit can reach the temperature: +160 ℃

- Flame retardant: IEC 60332.1

- Insulation resistance: 20 MΩ x km
