What is high temperature cable?

High Temperature Cable is crucial in a wide range of applications, including industrial, household and commercial ovens, in cooking and in drying equipment, in chemical processing and in medical equipment (e.g. in surgical devices that require sterilization in an autoclave).

High-temperature cable constructions, from conductor to insulating system, are rated 125°C, 150°C, 200°C, 250°C, 450°C and 550°C. Products include braided, braidless silicone (SRML), TGGT and MG types.

125°C

· EPDM Lead Wire: High-temperature lead wire with ethyline-propylene diene elastomer insulation. 125°C, 600 V lead wire.

150/200°C

· EPDM Lead Wire: High-temperature lead wire with ethyline-propylene diene elastomer insulation. 600 V wire with temperature ratings of 150°C non-flexing, 125°C flexing.

· SF-2: Ozone-resistant silicone rubber insulation with a braided fiberglass outer covering with a high temperature finish. 150/200°C 600 V appliance wire.

· SRML: Ozone-resistant silicone rubber insulation with a braided fiberglass outer covering with a high temperature finish. 150°C 600 V appliance wire.

· Braidless Silicone Rubber: Ozone resitant silicone rubber insulation over stranded tinned copper conductors. 150°C, 600 V appliance wire.

· Ozone-resistant silicone rubber insulation with a fiberglass reinforcement, covered by an overall layer of silicone rubber. 200°C 600 V appliance wire.

· SKS: Soaking pit cable made up of conductors with silicone rubber covered with fiberglass. Overall flame retardant tape, covered by a K-fiber braid with a moisture, flame and heat resistant finish. Overall braided stainless steel wire armor. 200°C 600 V.

· SRK: A cable with ozone-resistant silicone rubber insulation with an overall jacket of braided K-fiber impregnated with flame-, heat- and moisture-resistant finish. 200°C 600 V fixture wire and power cable.

· SRGK: A cable with ozone-resistant silicone rubber insulation with braided glass yarn conductor jacket. Cable core of insulated conductors shielded or unshielded and an overall jacket of braided K-fiber impregnated with flame-, heat- and moisture-resistant finish. 150/200°C 600 V multiconductor cable.

250°C

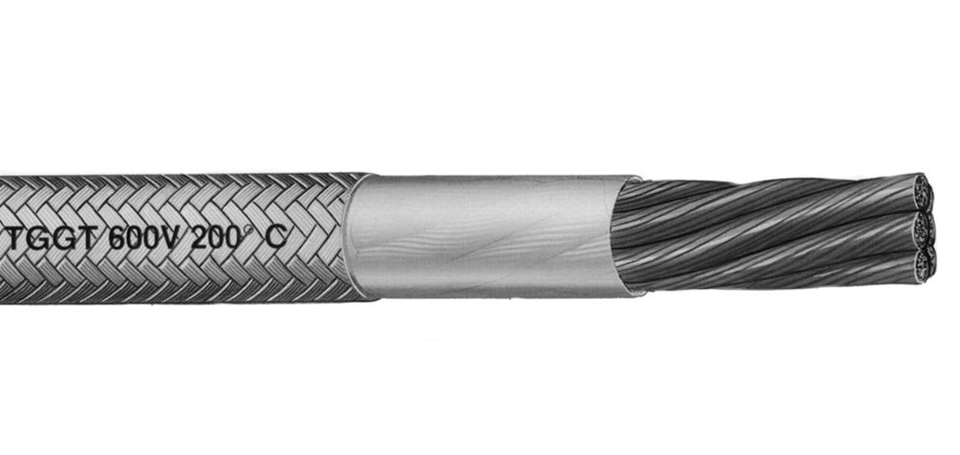

· TGGT: PTFE TeflonTM tape insulation with an insulation covering of wrapped glass yarn and an overall sheath of braided glass yarn impregnated with a moisture, heat, flame and fraying resistant compound. 600 V, 250°C appliance wire.

450/550°C

· MG / MGT: Glass reinforced mica tape insulated cable with an overall sheath of woven glass yarn impregnated with a flame, heat and moisture resistant finish. 450°C, 600 V appliance wire.

High Temperature Cable is available in custom sizes ranging from AWG 38 to AWG 2/0. Conductors which can be incorporated into our custom cable include nickel, nickel alloy and plated copper.
